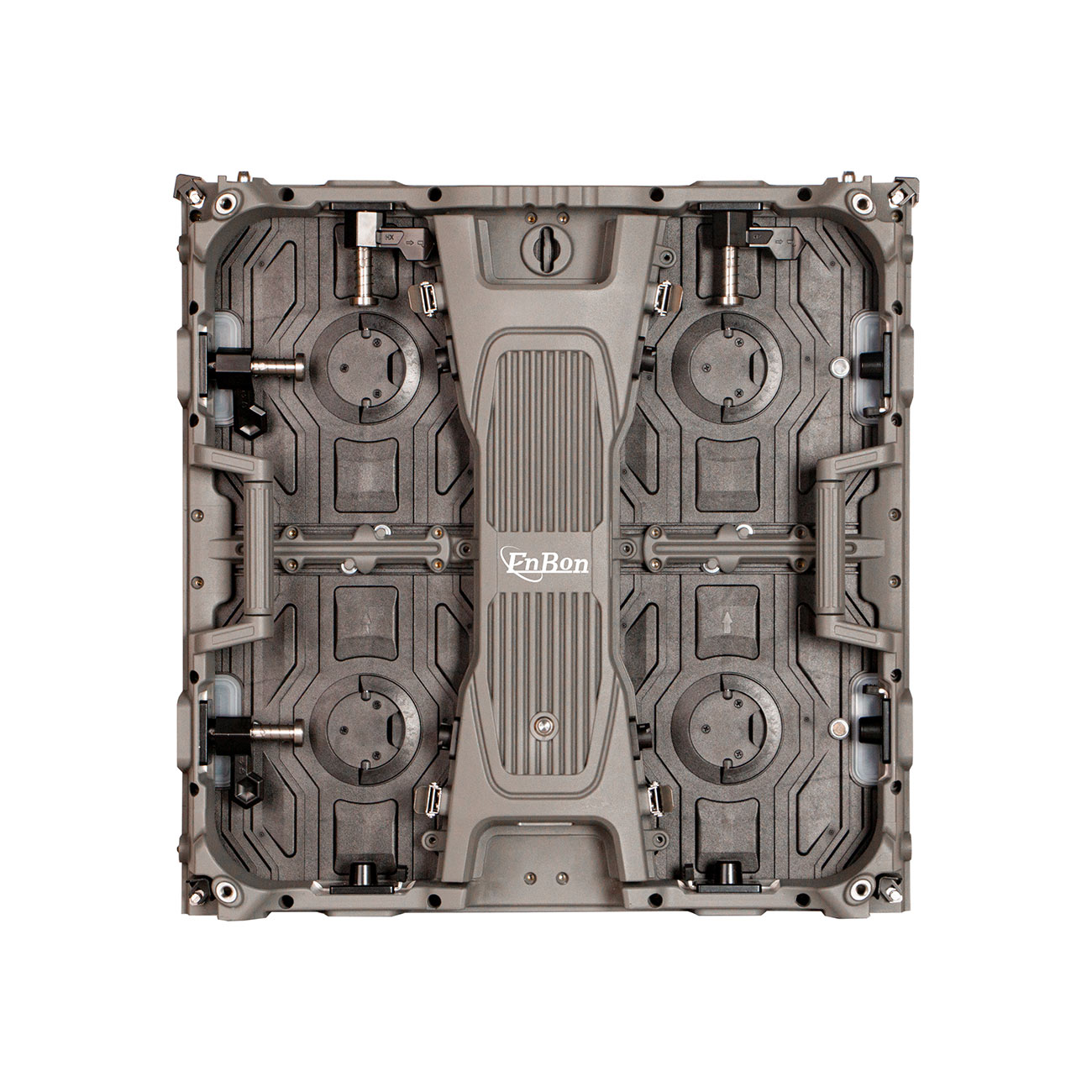

R5 型號
Enbon R5型戶外室內系列產品規格及特色等詳情 | Enbon公司產品

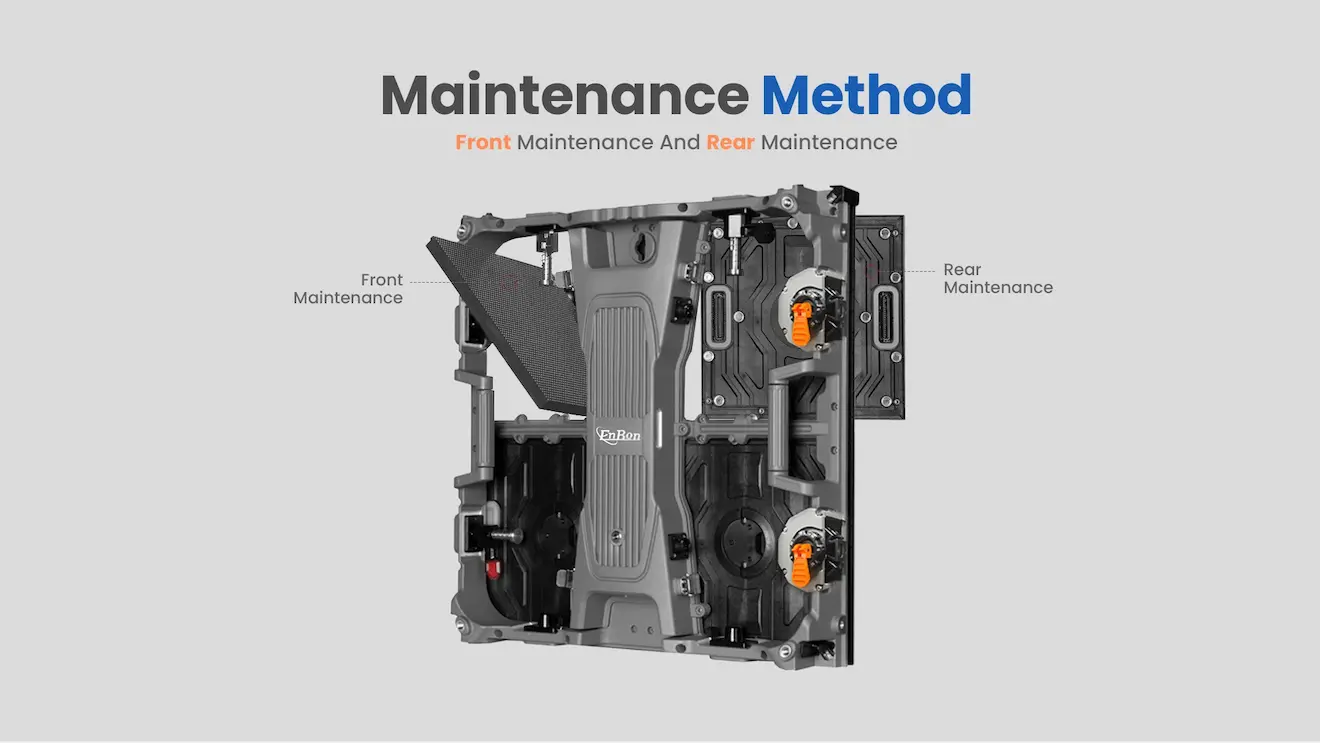

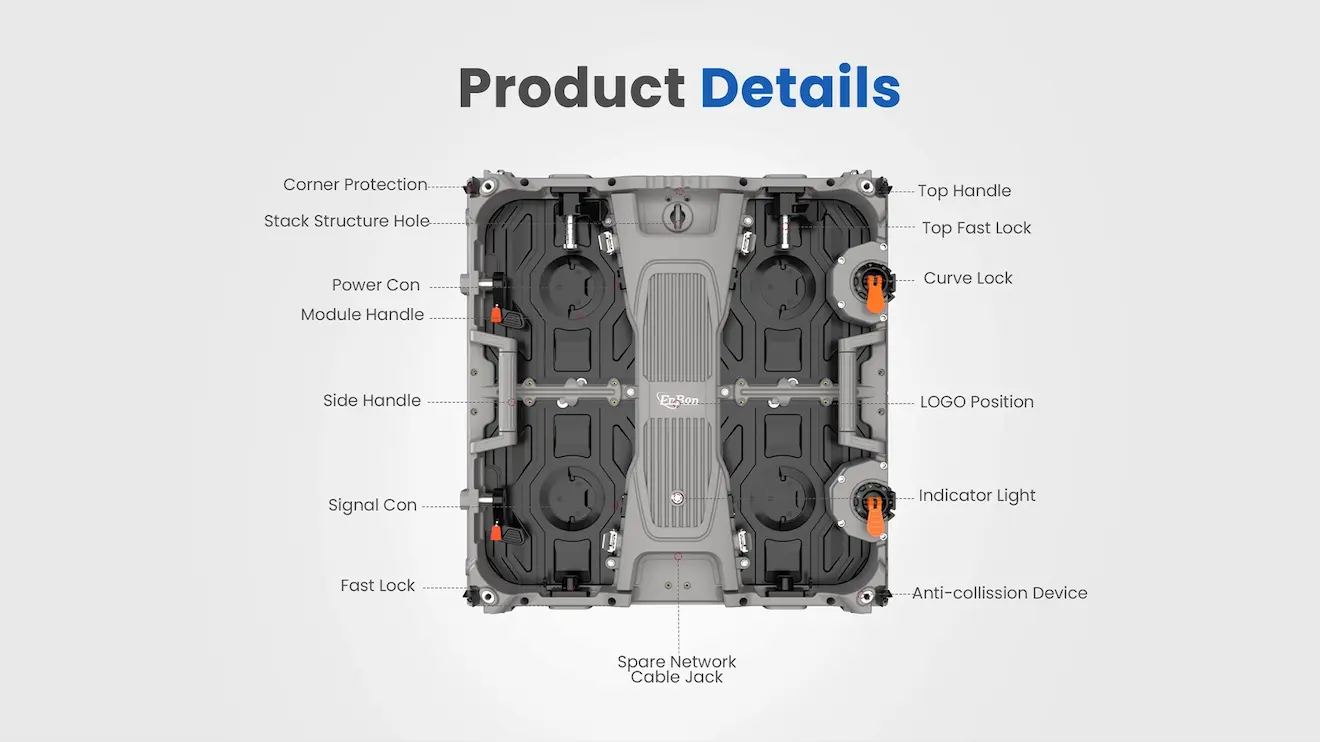

- 一體成型機櫃設計，節省維護時間

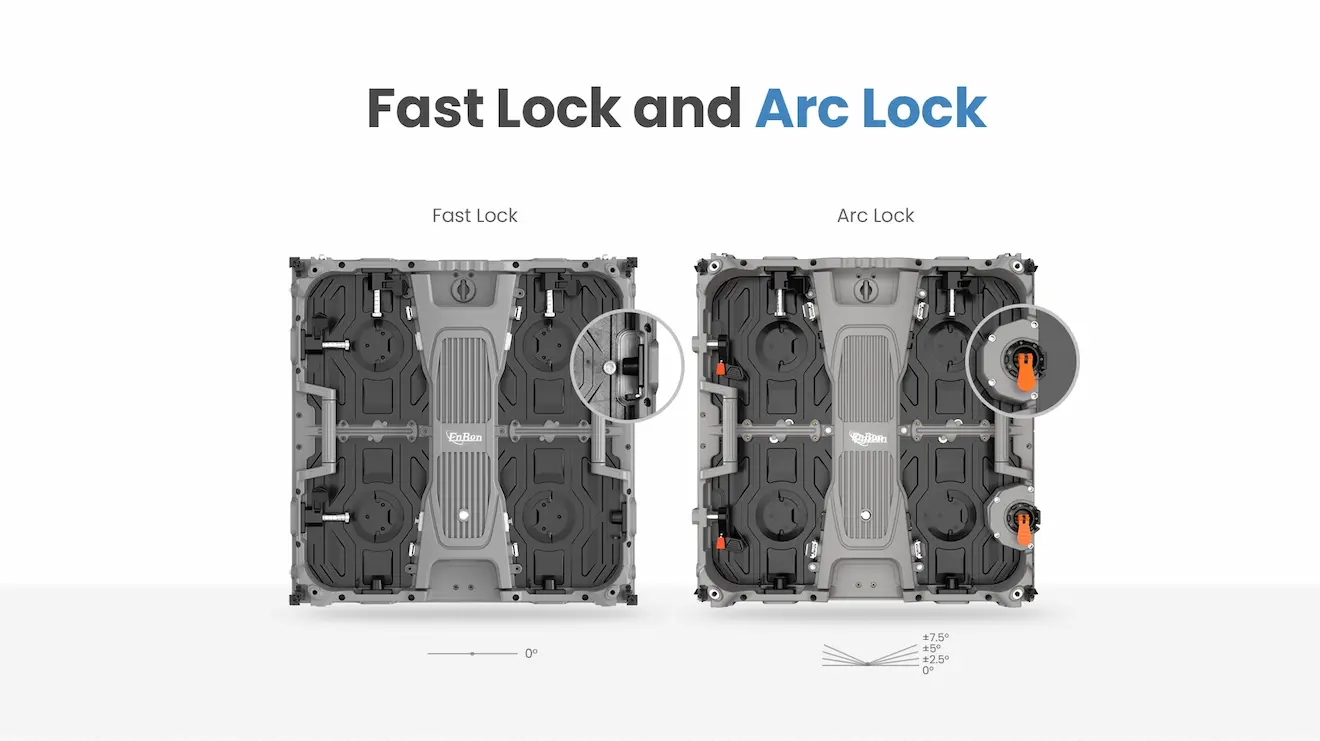

- 平面鎖和弧鎖集成，支援多種場景應用
- 弧形鎖支持0°/±2.5°/±5°±7.5°
- 動力控制櫃模組化設計，模組間無需接線
- 電源櫃內無線物料分佈乾淨整潔，訊號穩定
| Item | Indoor | Outdoor | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.56 | 1.95 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 | 4.81 |
| LED lamp | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Density(dots/m2) | 410881 | 262144 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | 43264 |
| Brightness | ≤ 800nits | ≤ 800nits | ≤ 800nits | ≤ 800nits | ≤ 800nits | ≥ 4000nits | ≥ 4000its | ≥ 4000nits | ≥ 4000nits |
| IP rating | IP45 | IP45 | IP45 | IP45 | IP45 | IP65 | IP65 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||||||
| Scan | 40scan | 32scan | 32scan | 13scan | 16scan | 32scan | 21scan | 16scan | 13scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg | 8kg | 8kg |
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |

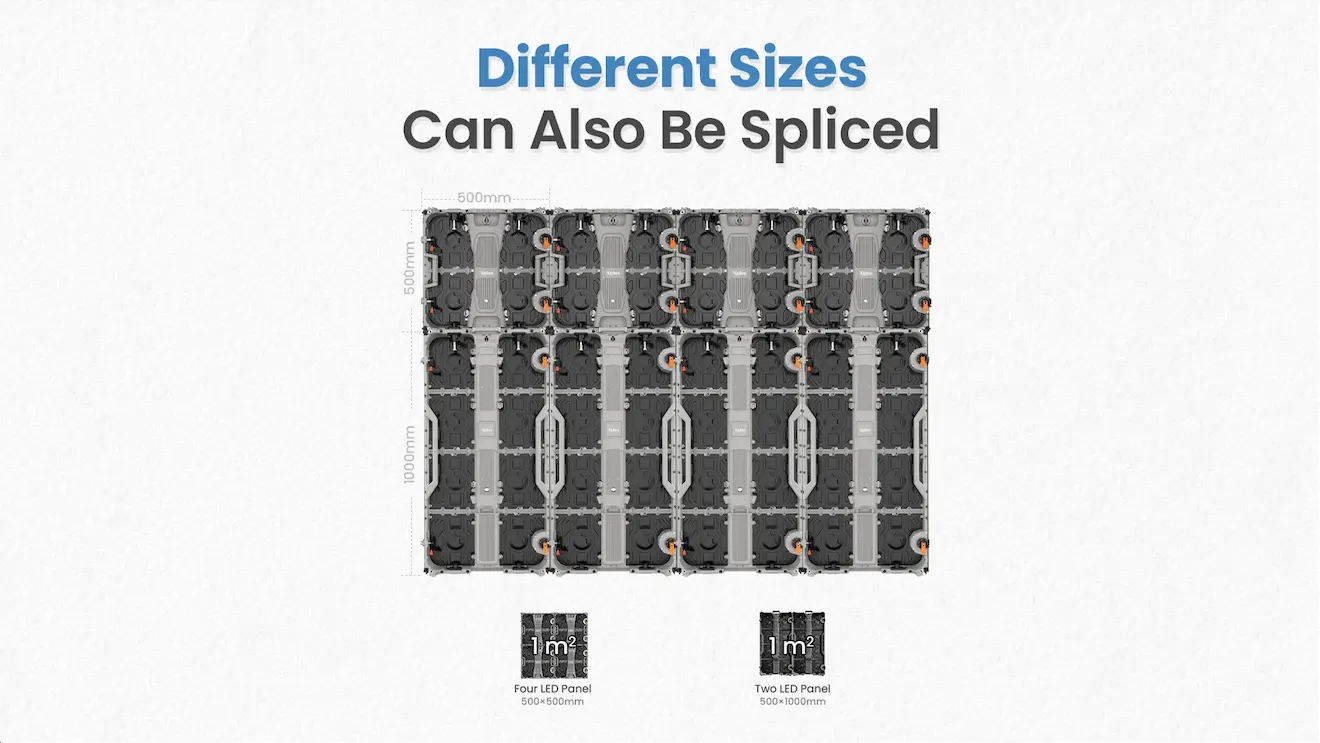

| Cabinet size(mm) | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 |
| Module pixel | 160*160dots | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Cabinet pixel | 320*320dots | 256*256dots | 192*192dots | 168*168dots | 128*128dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots |
| Max Power | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | 750w/sqm | 750w/sqm | 750w/sqm | 750w/sqm |
| Average Power | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | 450w/sqm | 450w/sqm | 450w/sqm | 450w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||||
| Control way | Synchronous/Asynchronous | Synchronous/Asynchronous | |||||||
| Gray Scale | 16 bit | 16 bit | |||||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||||
| Work humidity | 10% ~ 90% | 10% ~ 90% | |||||||
| Work temperature | ﹣20 ~﹢65℃ | ﹣20 ~﹢65℃ | |||||||
LED Module |
|
| Pixel Pitch | Indoor:1.56,1.95,2.604, 2.976,3.91 Outdoor:2.604,2.976, 3.91,4.81 |
|---|---|
| LED lamp | Indoor: SMD1212/1515/2020 Outdoor: SMD1415/1921 |
| Brightness | Indoor: ≤800 nits Outdoor: ≥4000 nits |
| Module pixel | Indoor:160*160/128*128/96*96/ 84*84/64*64(dots) Outdoor: 96*96/84*84/64*64/ 52*52(dots) |
| Cabinet pixel | Indoor: 320*320/256*256/ 192*192/168*168/ 128*128(dots) Outdoor: 192*192/168*168/128*128/ 104*104(dots) |
Appearance |
|
| Module size | Indoor: 250*250mm Outdoor:250*250mm |
| Cabinet size | Indoor: 500*500*85mm Outdoor: 500*500*85mm |
| Module weight | Indoor: 0.5kg Outdoor: 0.5kg |
| Cabinet Weight | Indoor: 7.5kg Outdoor:8kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | Indoor: 600w/sqm Outdoor:750w/sqm |
| Average Power | Indoor: 360w/sqm Outdoor: 450w/sqm(P3.91) |
Waterproof grade |
|

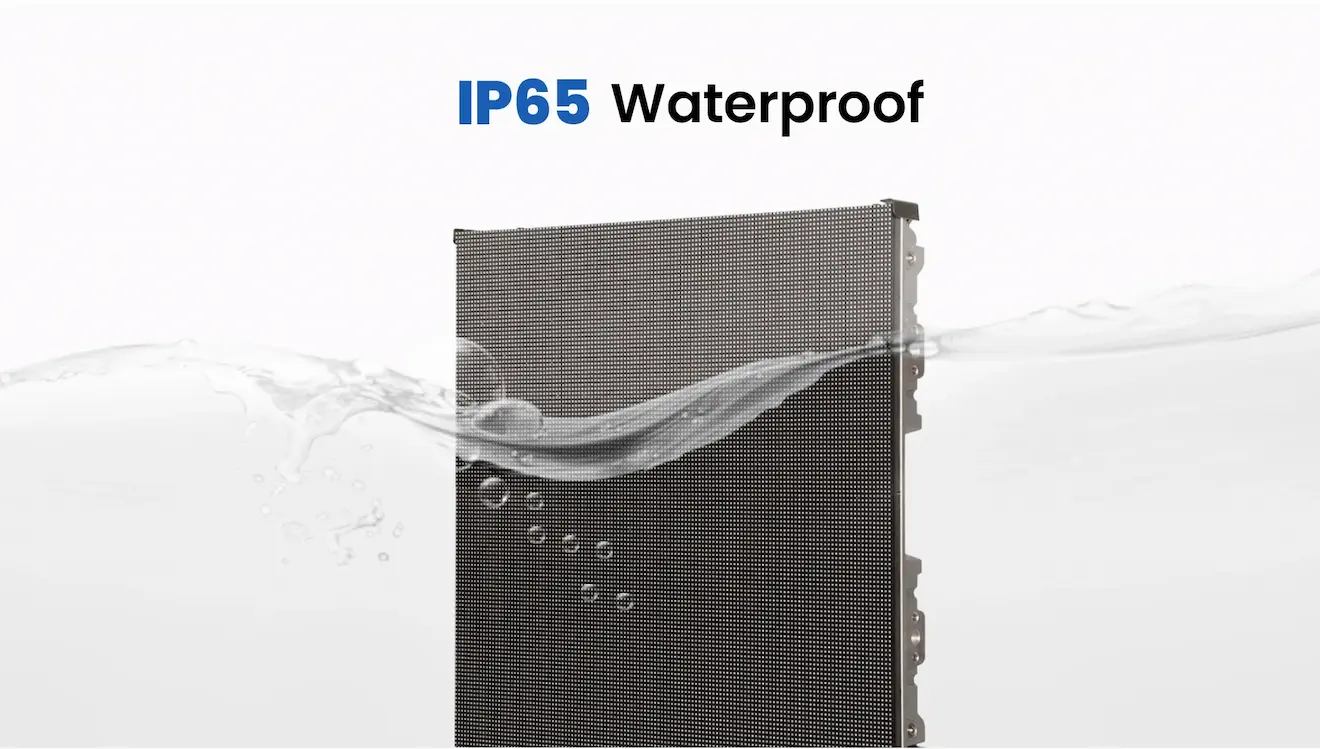

| IP rating | Indoor : IP45 Outdoor: IP65 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | Indoor:40/32/21/16(scan) Outdoor:32/21/16/13(scan) |
Material density |
|
| Density | Indoor:410881/262144/147456/ 112896/65536dots/m2 Outdoor:147456/112896/65536/ 43264dots/m2 |
| Cabinet Materiel | Die-casting Aluminum |
