FC B 型號
Enbon FC B型高清全彩戶外固定安裝防水防塵耐熱LED顯示器規格及詳情 | Enbon LED顯示器製造商
易於維護和維修 特殊防水設計：IP65 完美的螢幕平整度 支援前後台服務 320mm*320mm尺寸模組 960mm*960mm尺寸櫃體 不同模組使用同一個機櫃
- 易於維護和維修
- 特殊防水設計：IP65
- 完美的螢幕平整度

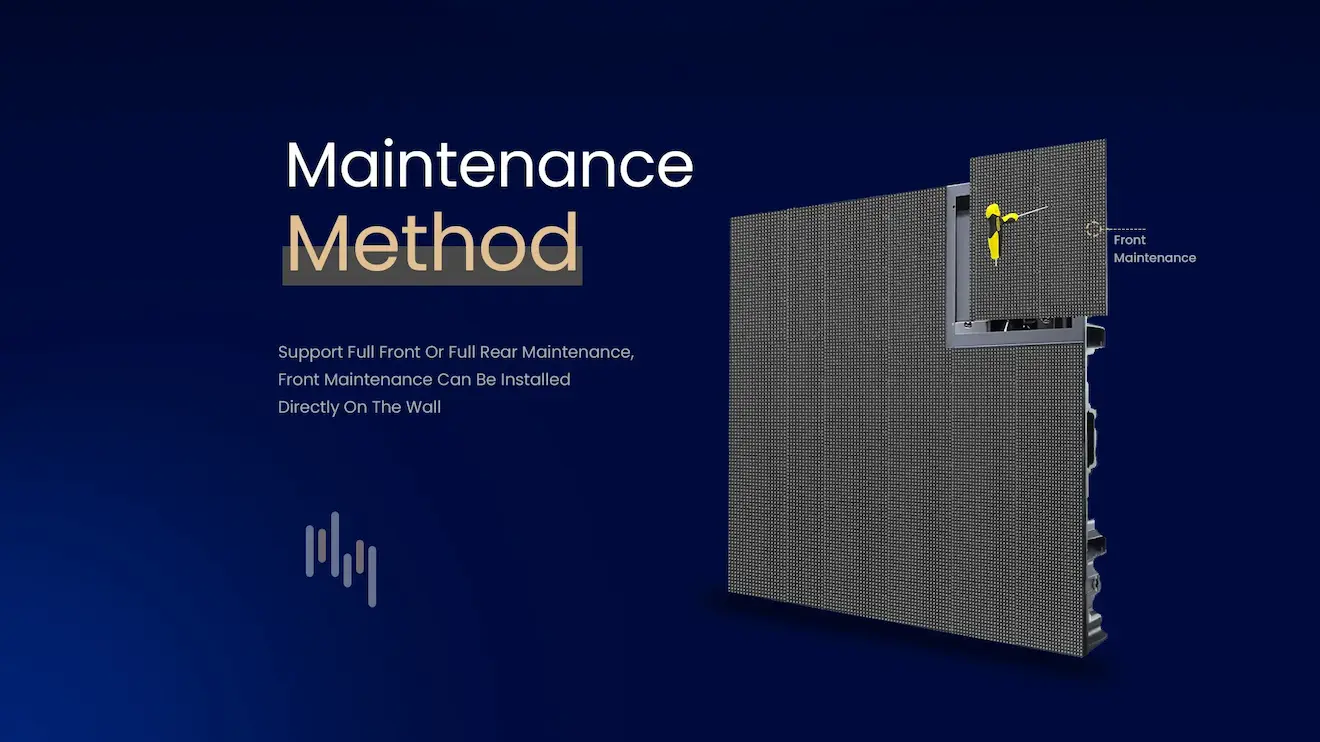

- 支援前後台服務
- 320mm*320mm尺寸模組

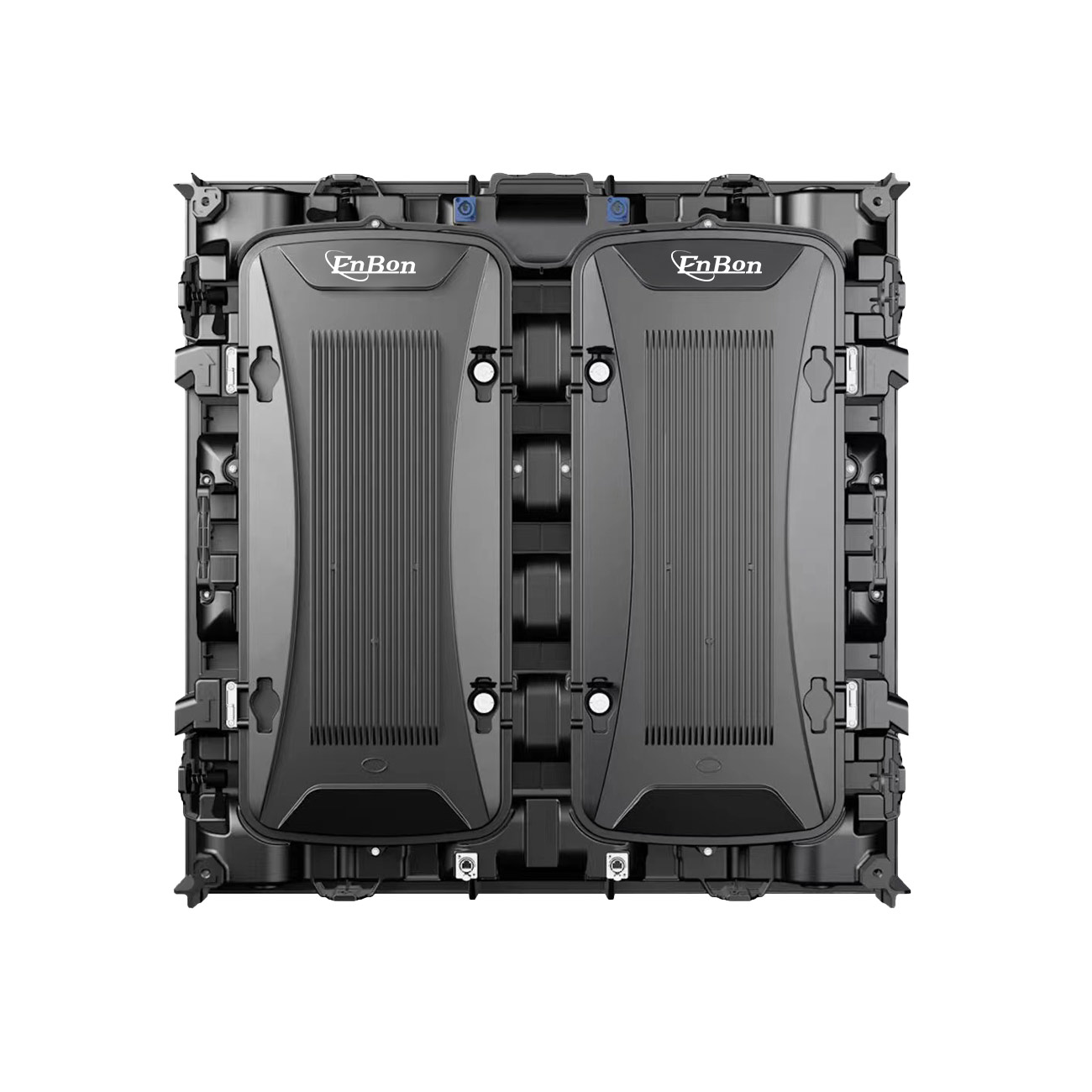

- 960mm*960mm尺寸櫃體
- 不同模組使用同一個機櫃
| Item | Outdoor | ||||||
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 4 | 5.33 | 6.67 | 8 | 10 | 16 | |
| LED lamp | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP346 | |
| Density | 62500dots/m2 | 35344dots/m2 | 22500dots/m2 | 15625dots/m2 | 10000dots/m2 | 3096dots/m2 | |
| Brightness | 6000nits | 6000nits | 6000nits | 6000nits | 6500nits | 8500nits | |
| IP rating | IP65 | ||||||
| Cabinet Materiel | Die-casting Aluminum | ||||||
| Module weight | 1.6kg | 1.6kg | 1.6kg | 1.6kg | 1.5kg | 2kg | |
| Cabinet Weight | 30kg | 30kg | 30kg | 30kg | 30kg | 32kg | |
| Module size | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm | |

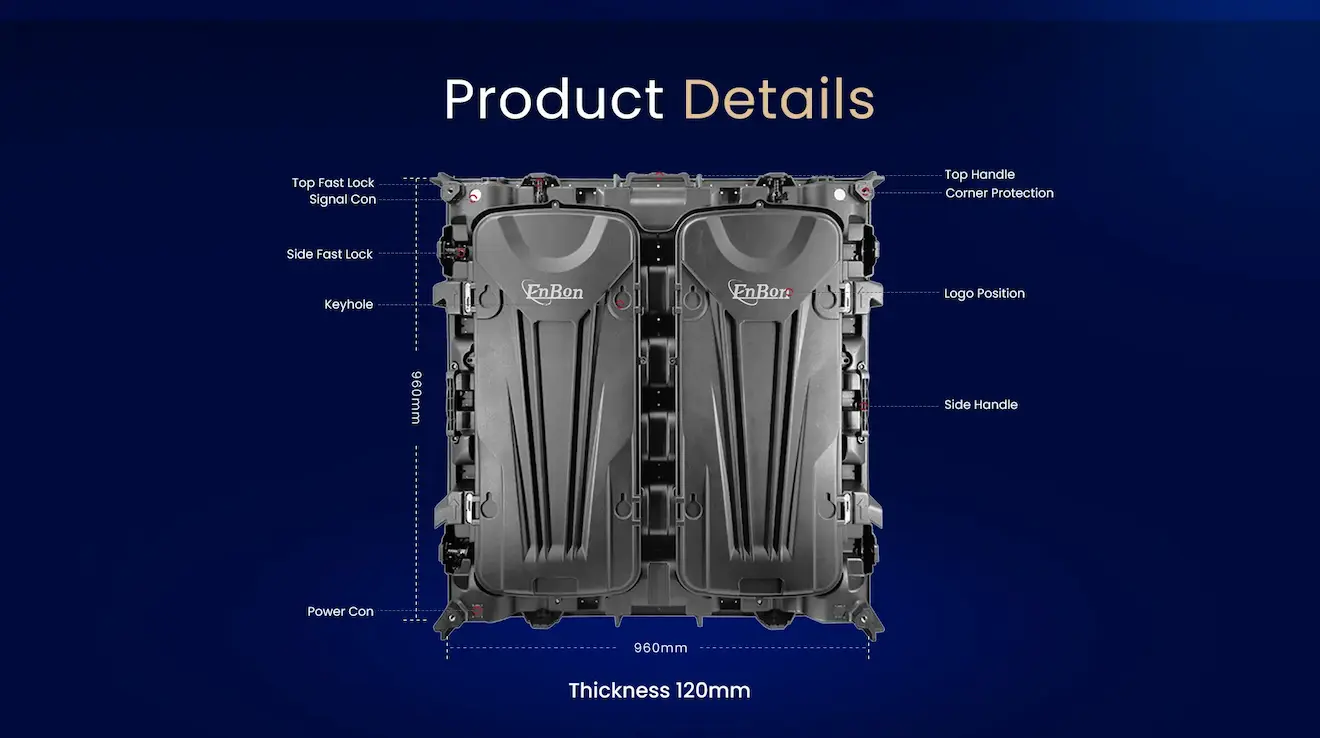

| Cabinet size | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm | |
| Module pixel | 80*80dots | 60*60dots | 48*48dots | 40*40dots | 32*32dots | 20*20dots | |
| Cabinet pixel | 240*240dots | 180*180dots | 144*144dots | 120*120dots | 96*96dots | 60*60dots | |
| Max Power | 850w/sqm | 800w/sqm | 850w/sqm | 800w/sqm | 700w/sqm | 400w/sqm | |
| Average Power | 300w/sqm | 380w/sqm | 300w/sqm | 380w/sqm | 240w/sqm | 130w/sqm | |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||||
| Control way | synchronous/asynchronous | ||||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||||
| Work humidity | 10% ~ 90% | ||||||
| Work temperature | ﹣20 ~﹢50℃ | ||||||
LED Module |
|
| Pixel Pitch | Outdoor:4,5.33,6.67,8,10,16 |
|---|---|
| LED lamp | Outdoor: SMD2727/DIP346 |
| Brightness | Outdoor: 6000/6500/8500 |
| Module pixel | Outdoor: 80*80,60*60,48*48,40*40dots |
| Cabinet pixel | Outdoor: 240*240,180*180,144*144,120*120dots |
Appearance |
|
| Module size | Outdoor:320*320mm |
| Cabinet size | Outdoor: 960*960*120mm |
| Module weight | Outdoor: 1.6kg,1.5kg,2kg |
| Cabinet Weight | Outdoor: 30kg,32kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢50℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | Outdoor: 850w/sqm,700w/sqm |
| Average Power | Outdoor: 300w/sqm,380w/sqm,240w/sqm |
Waterproof grade |
|
| IP rating | Outdoor: IP65 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
Material density |
|
| Density | Outdoor: 62500,35344,22500,15625,10000,3096dots |
| Cabinet Materiel | Die-casting Aluminum |
