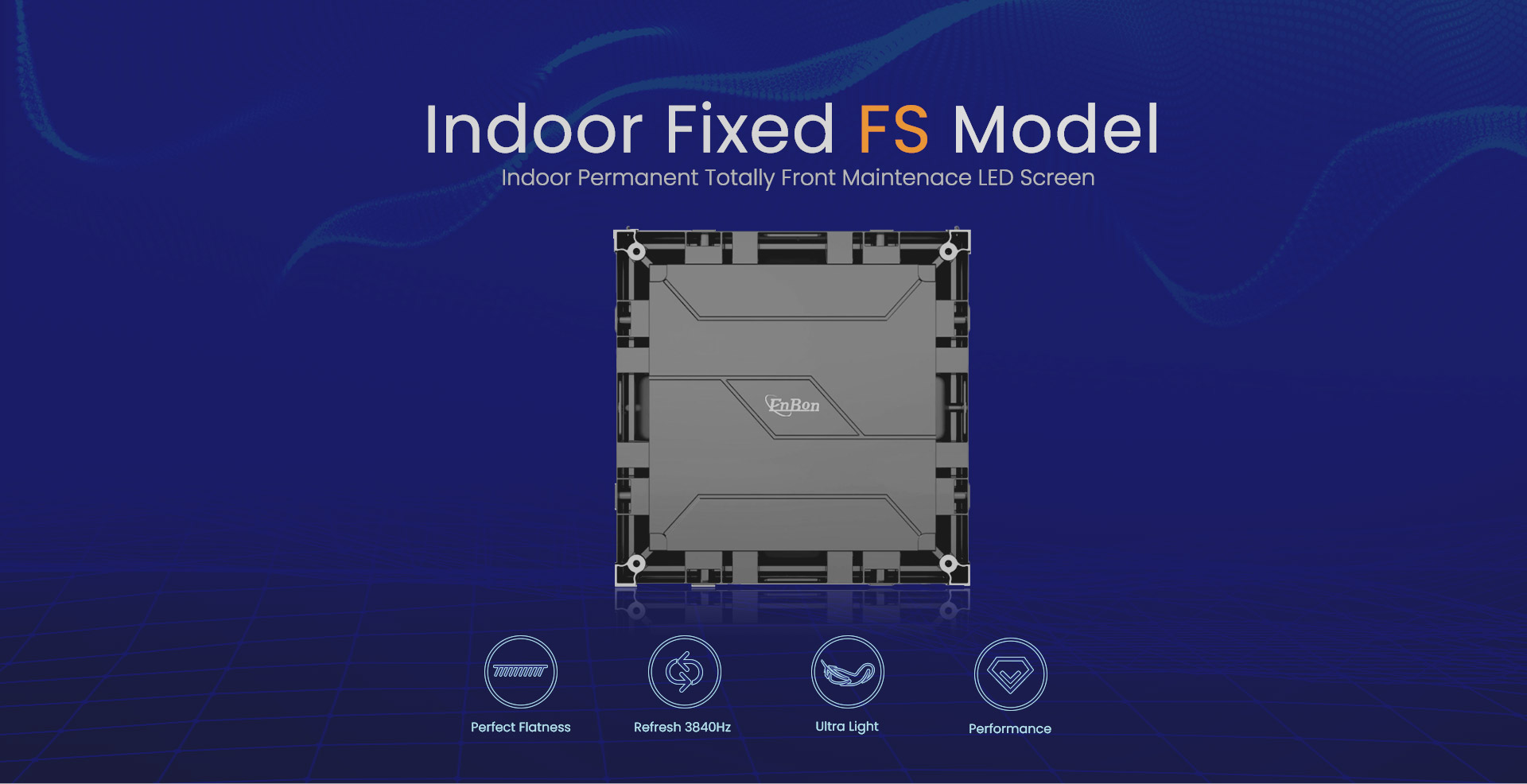

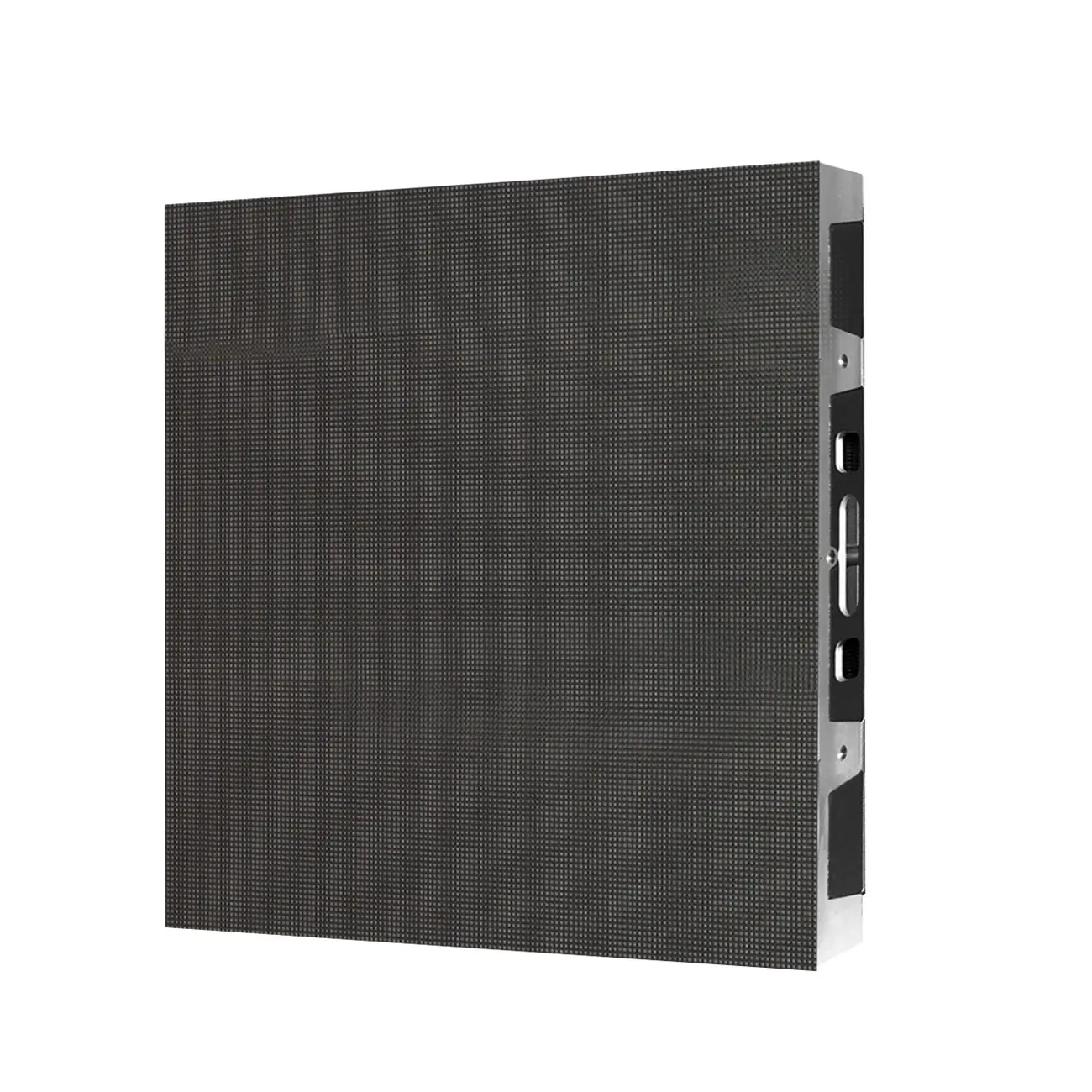

FS Model
Enbon FS 型 LED 面板數位看板顯示器固定安裝室內可程式顯示器 | Enbon LED顯示器製造商
- 易於維護和維修
- Enbon FS 可以做的事情P1.5 P1.8 P2.5 P3.0
- 完美的螢幕平整度

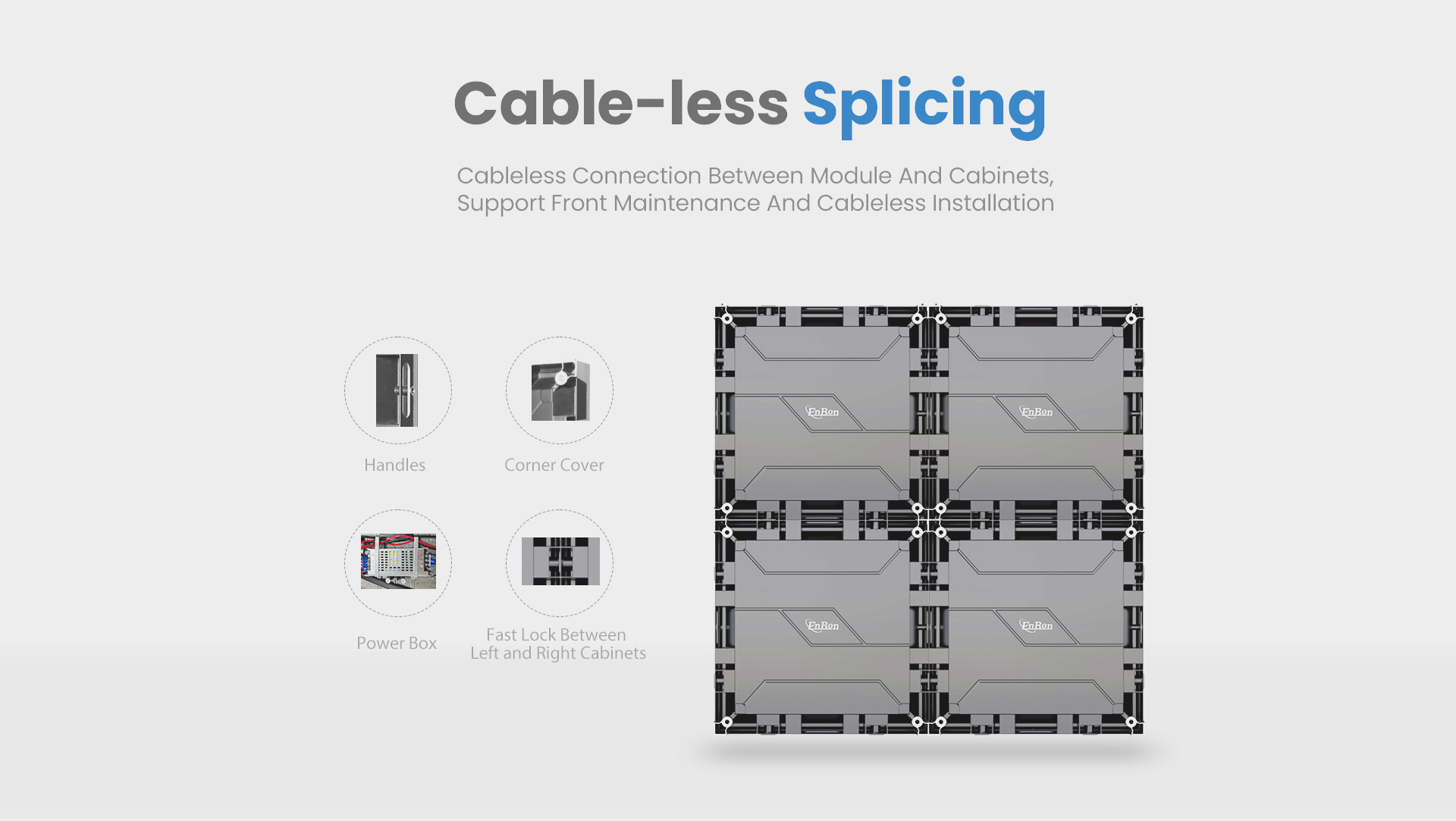

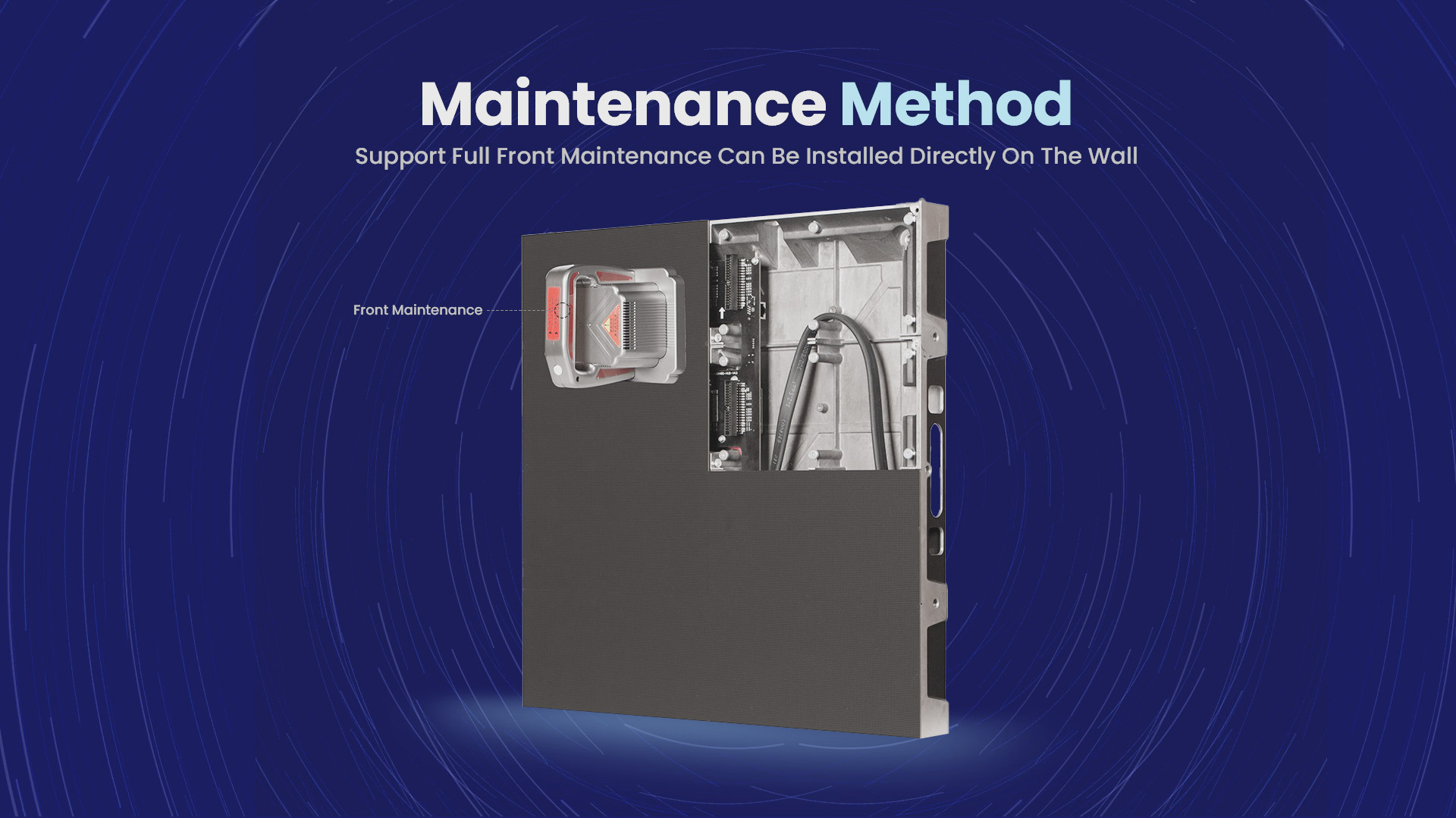

- 支援全程前台服務

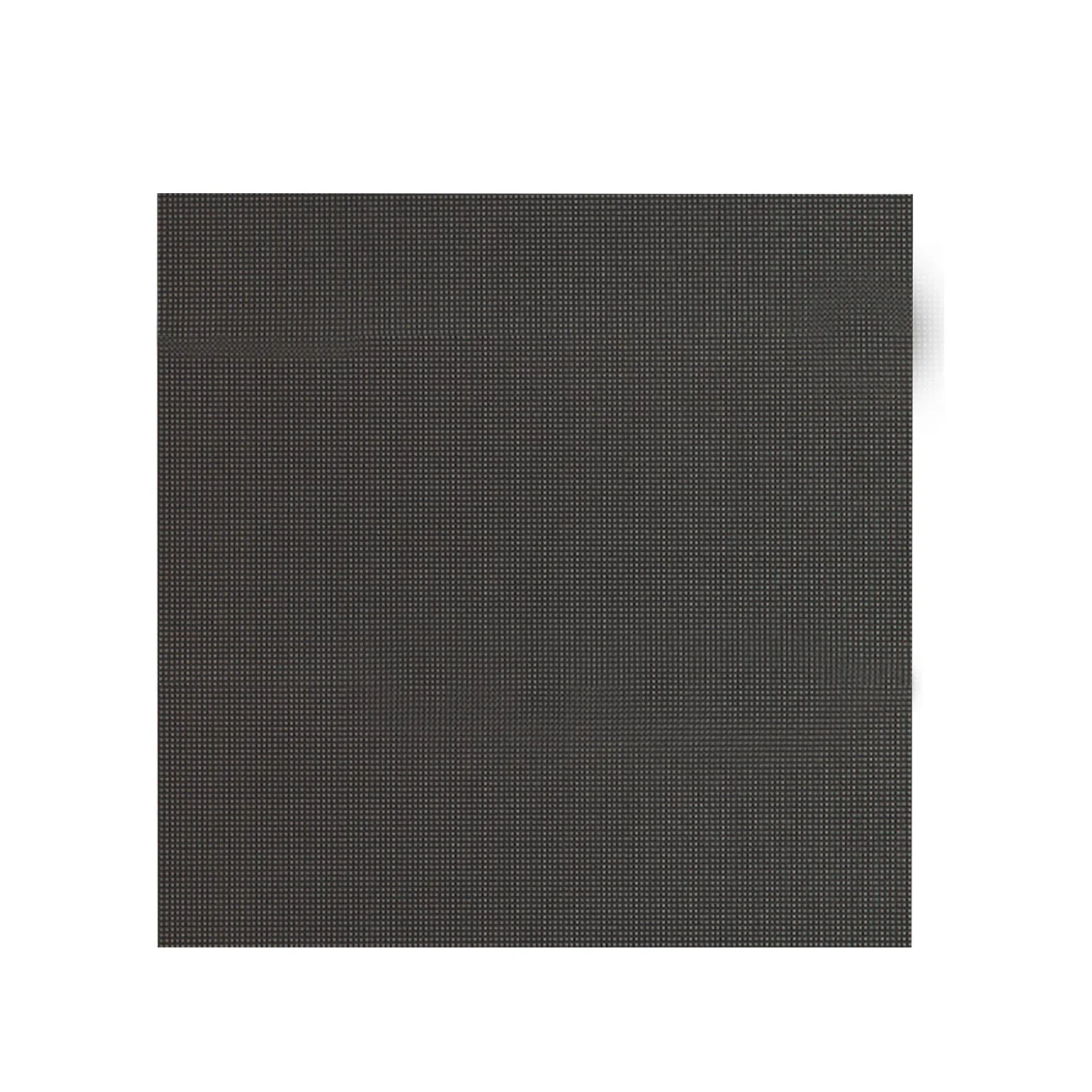

- 240mm*240mm尺寸模組

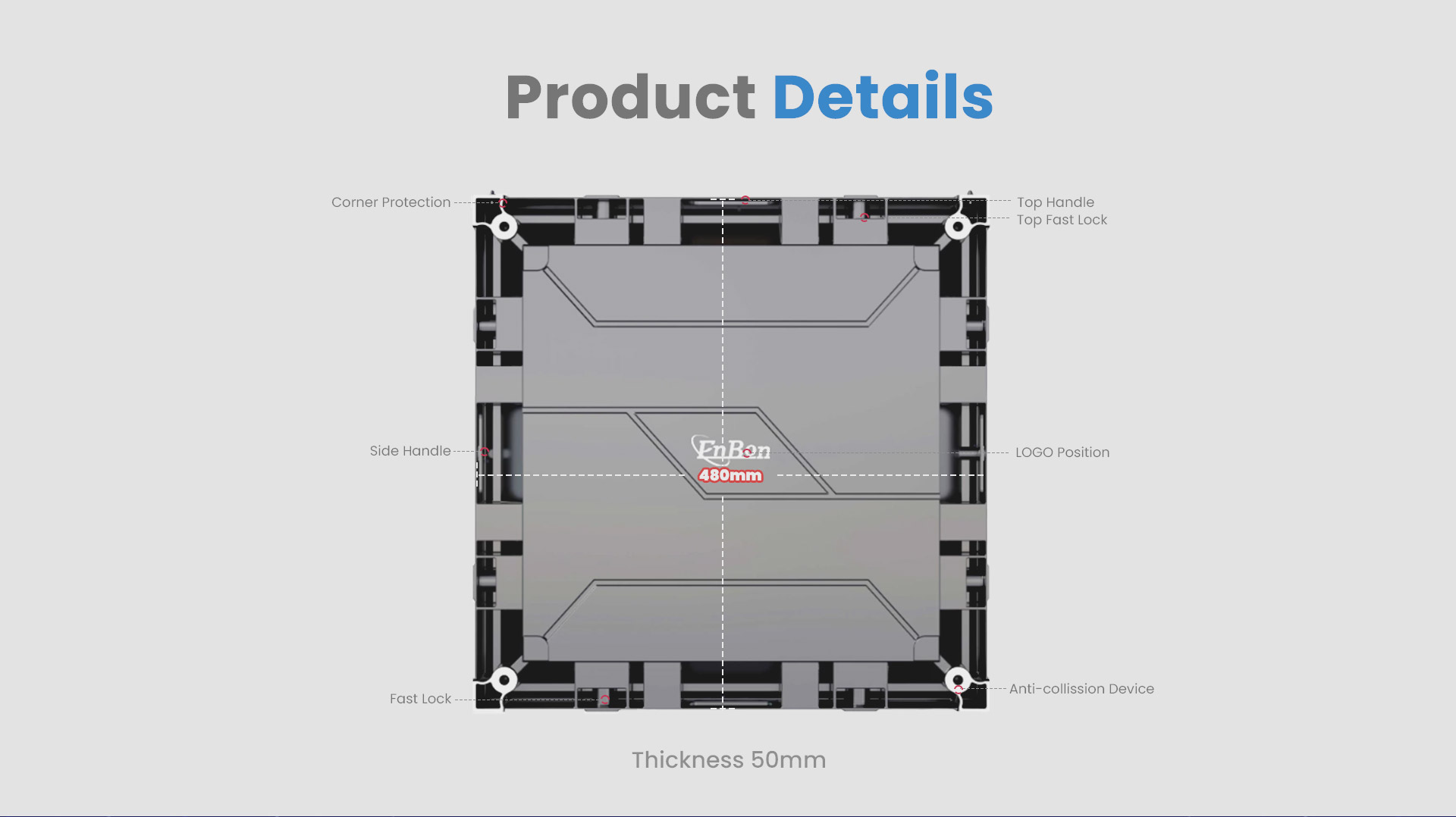

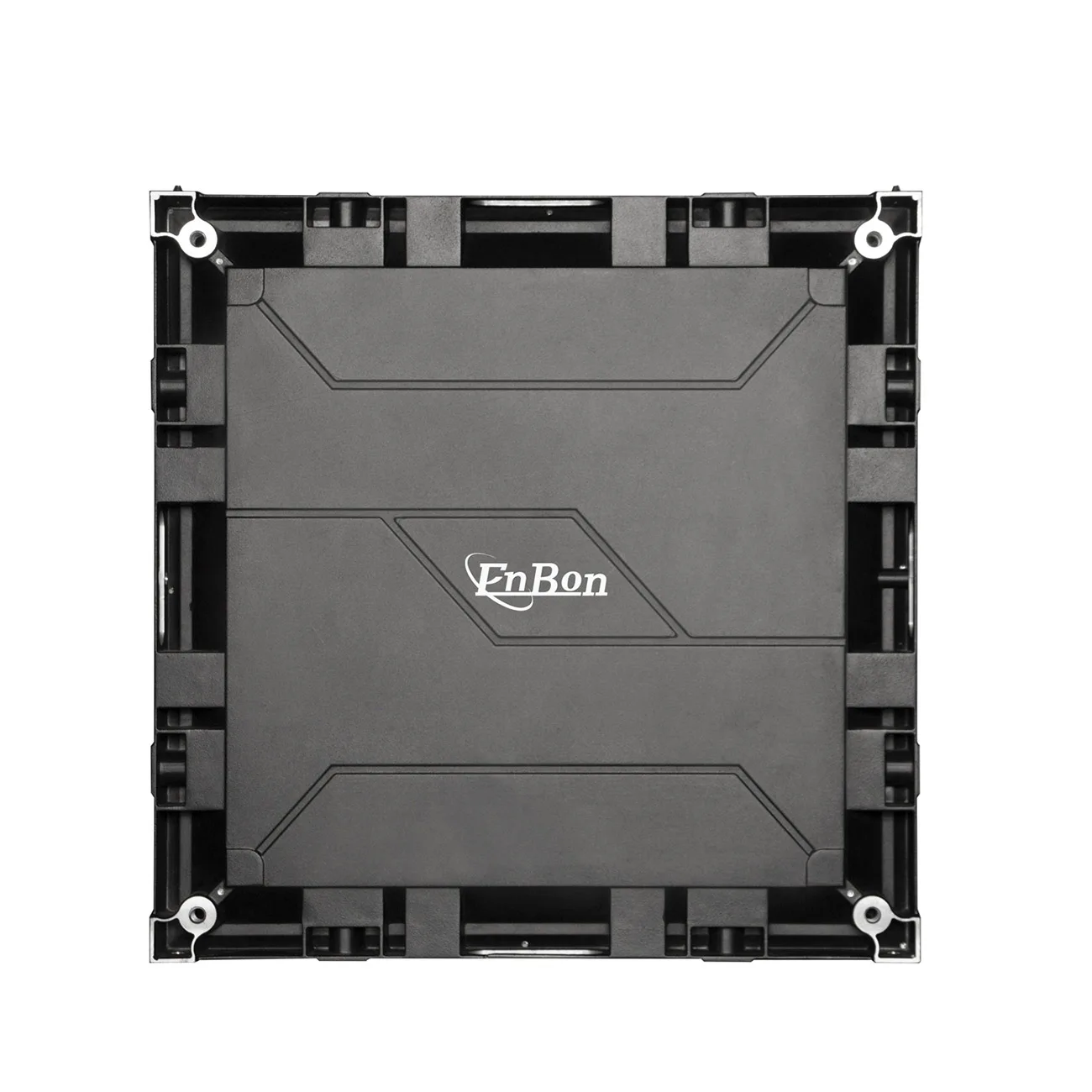

- 480mm*480mm尺寸的櫃子
- 不同模組使用相同的HUB
- Enbon FS 可以製作 2K 4K 8K視覺工作室
| Item | Indoor | |||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.579 | 1.875 | 2.5 | 3 | ||
| LED lamp | SMD1212 | SMD1515 | SMD2020 | SMD2020 | ||
| Density(dots/m2) | 401111 | 284444 | 160000 | 111111 | ||
| Brightness | ≤800nits | ≤800nits | ≤800nits | ≤800nits | ||
| IP rating | Front IP45/Rear IP30 | |||||

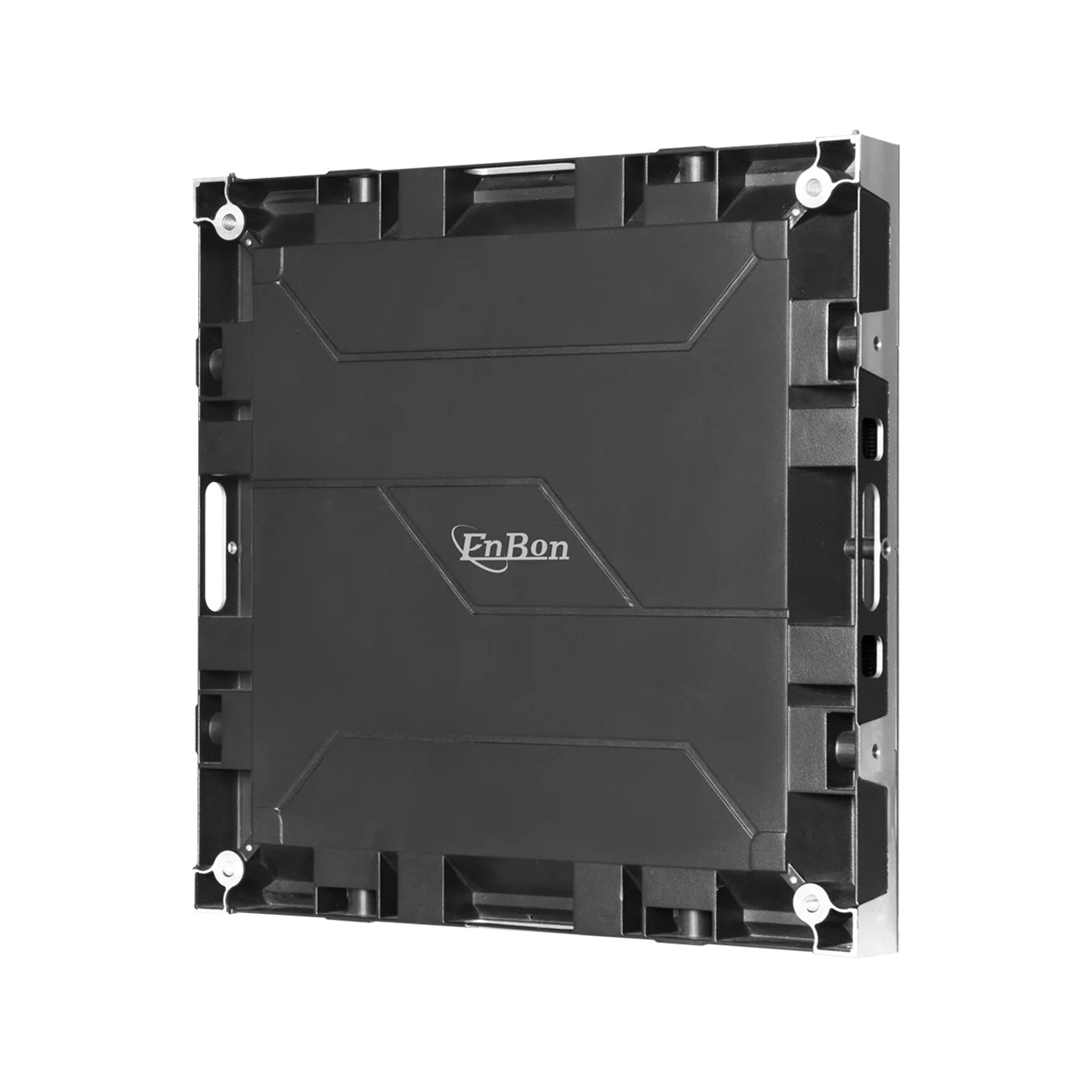

| Cabinet Materiel | Die-casting Aluminum | |||||
| Scan | 38scan | 64scan | 32scan | 40scan | ||
| Module weight | 0.3kg | 0.3kg | 0.3kg | 0.3kg | ||

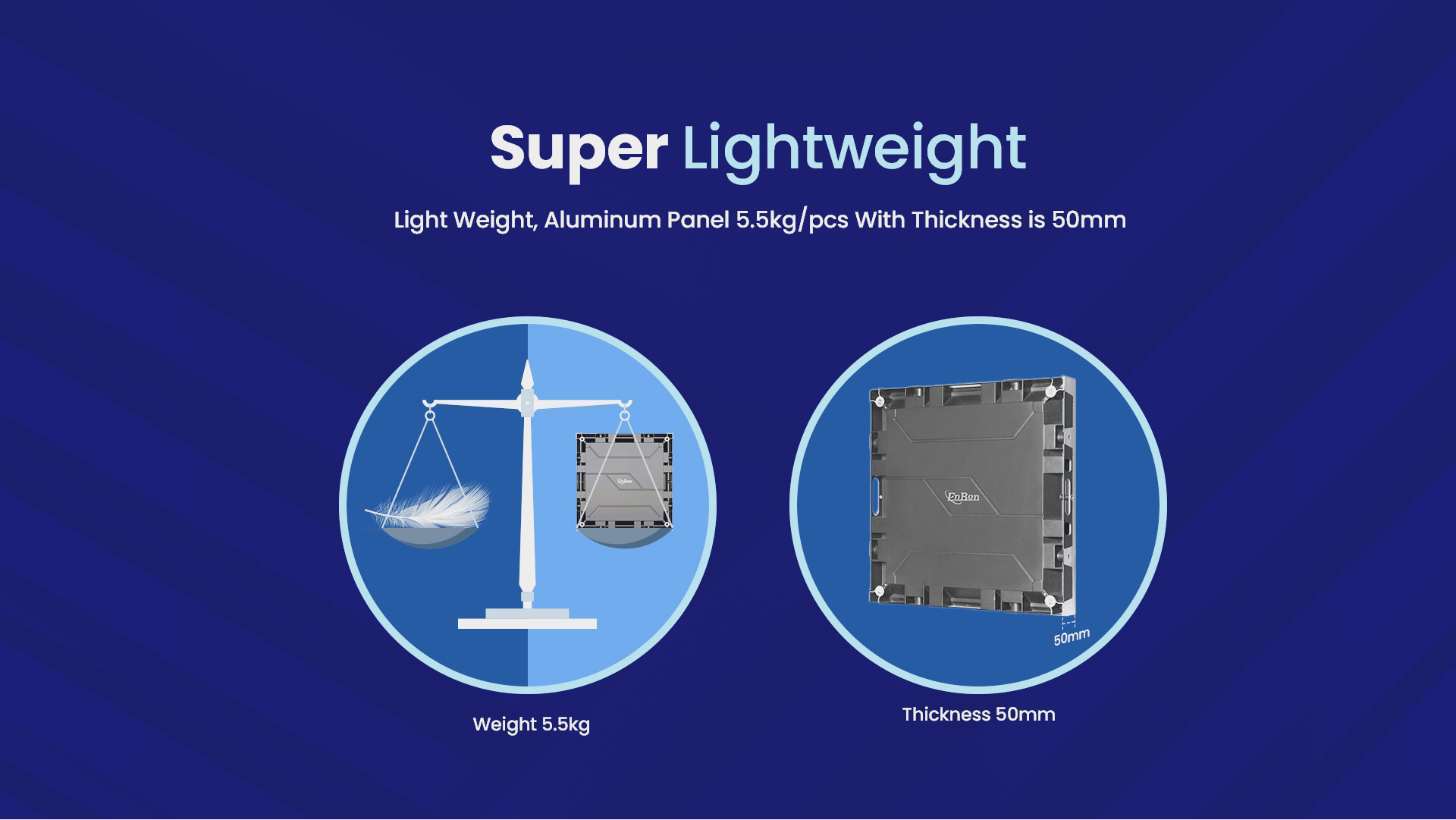

| Cabinet Weight | 5.5kg | 5.5kg | 5.5kg | 5.5kg | ||
| Module size | 240*240mm | 240*240mm | 240*240mm | 240*240mm | ||
| Cabinet size | 480*480*85mm | 480*480*85mm | 480*480*85mm | 480*480*85mm | ||
| Module pixel | 152*152dots | 128*128dots | 96*96dots | 80*80dots | ||
| Cabinet pixel | 304*304dots | 256*256dots | 192*192dots | 160*160dots | ||
| Max Power | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | ||
| Average Power | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | ||
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Gray Scale | 16bit | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10% ~ 90% | |||||
| Work temperature | ﹣20 ~﹢65℃ | |||||
LED Module |
|
| Pixel Pitch | P1.579, P1.875, P2.5, P3 |
|---|---|
| LED lamp | SMD1212/1515/SMD2020 |
| Brightness | ≤800 nits |
| Module pixel | 152*152/128*128/96*96/ 80*80(dots) |
| Cabinet pixel | 304*304/256*256/192*192/ 160*160(dots) |
Appearance |
|
| Module size | 240*240mm |
| Cabinet size | 480*480*50mm |
| Module weight | 0.3kg |
| Cabinet Weight | 5.5kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | 600w/sqm |
| Average Power | 360w/sqm |
Waterproof grade |
|
| IP rating | IP45 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70)deg V140(+70/-70)deg |
| Scan | Indoor:38scan/64scan/32scan /40scan |
Material density |
|
| Density | 401111/284444/160000/ 111111dots/m2 |
| Cabinet Materiel | Die-casting Aluminum |
